Stage Lighting Manufacturer

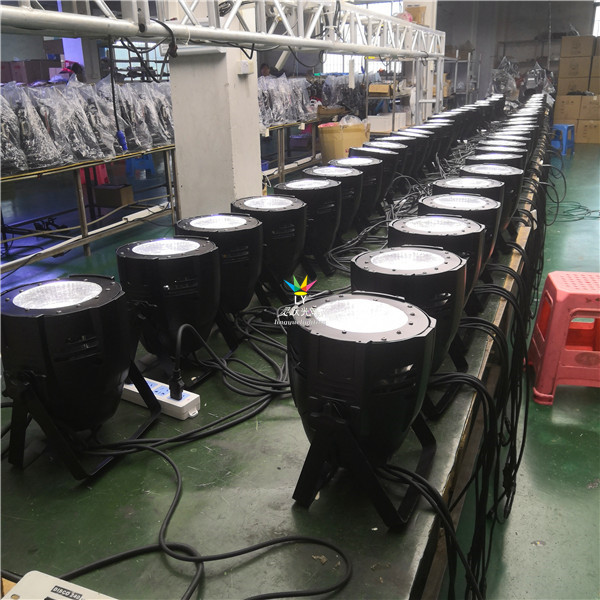

From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.

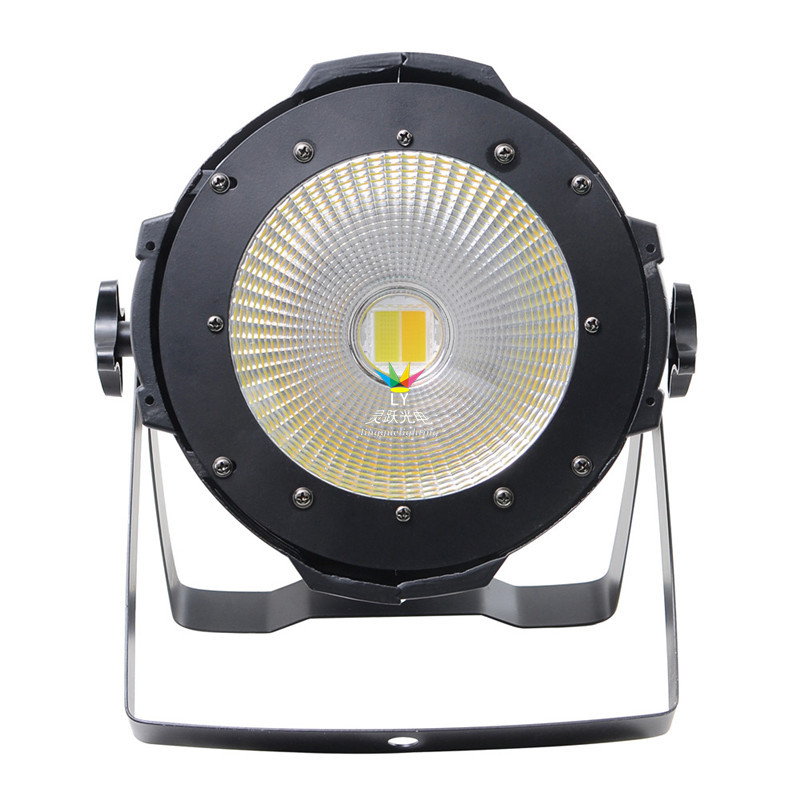

Product Name: 100W COB LED Light
Product status: finished product
Place of Origin: Guangzhou
Product model: LY-100K 150W COB surface light
Product power: 200W
Obtained certification: CE ROHS SGS
Product packaging: carton or air box
Brand Name: Lingyue Optoelectronics
Production method: EXW OEM
Scan to add WeChat customer service to provide more comprehensive services
Parameter
Lighting Effect
Video Show
Applications
Download

Product model: LY-100K

Product name: 100W COB LED Light


Product parameters:

Rated voltage: AC100V-240V ±10﹪, 50Hz~60Hz

Power: 150W

LED light source: 1x100W/150W high brightness LED

LED color: warm white or true white or warm white + true white

LED life: 6-10 million hours

Optical lens: matte or smooth surface, factory default 25° (15°, 45°, 60° optional)

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 5/6 DMX512 channels

Strobe: Strobe speed 1-20 times per second

Dimming: 0%-100% linear dimming

Display: digital display + button

Waterproof rating: IP20

Lamp size: 21.5x21.5x33cm Lamp net weight: 2.5kgs

1 set/carton packing size: 26x26x38.5cm gross weight: 3kgs

4 sets/carton packing size: 54x54x41cm gross weight: 12.5kgs

6 sets/carton packing size: 81x54x41cm gross weight 19kgs

8 sets/air box packing size: 56x62x106cm gross weight: 52kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report

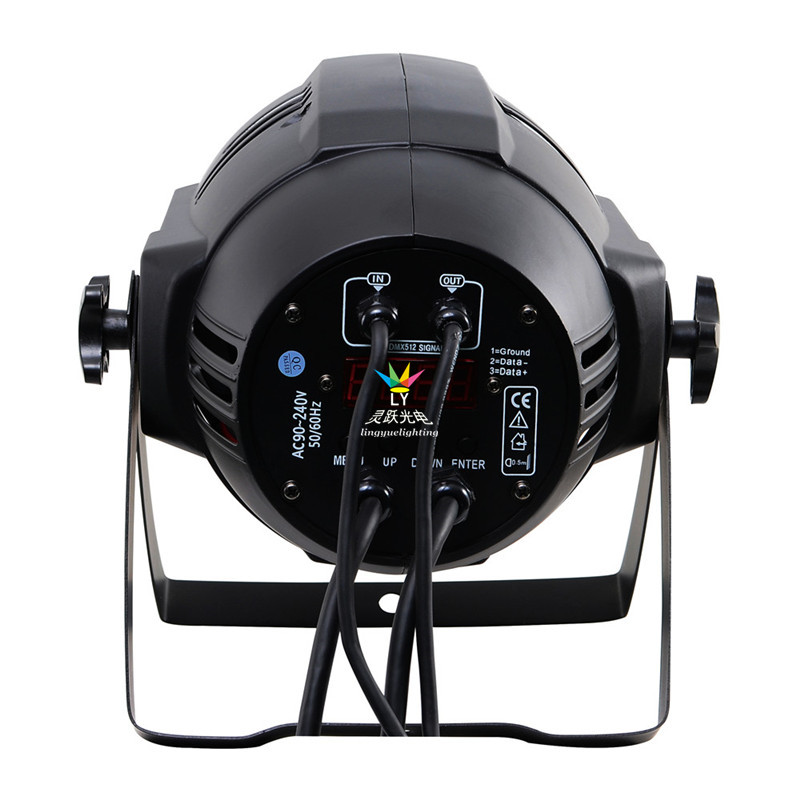

Standard accessories: aluminum lamp hook, lamp with signal wire and power cable, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: customization is not supported for less than 100 units, and the delivery time for customized models will be increased, 10-15 days (customization such as: LED light source, silk screen LOGO, packaging, LED lens angle, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
