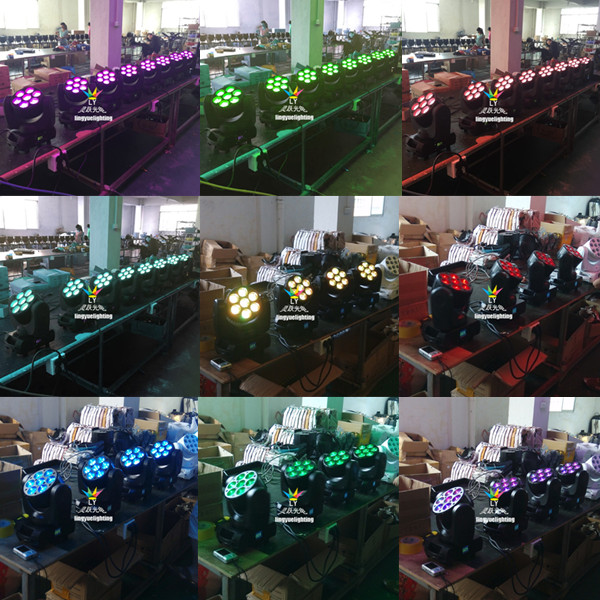

From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.
Product Name: 7pcs LED Moving Head
Product status: conventional product
Place of Origin: Guangzhou City (China)
Product model: LY-307M 7pcs King Kong LED moving head light
Product power: AC24v/110-240v 50-60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (can be customized air box)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter

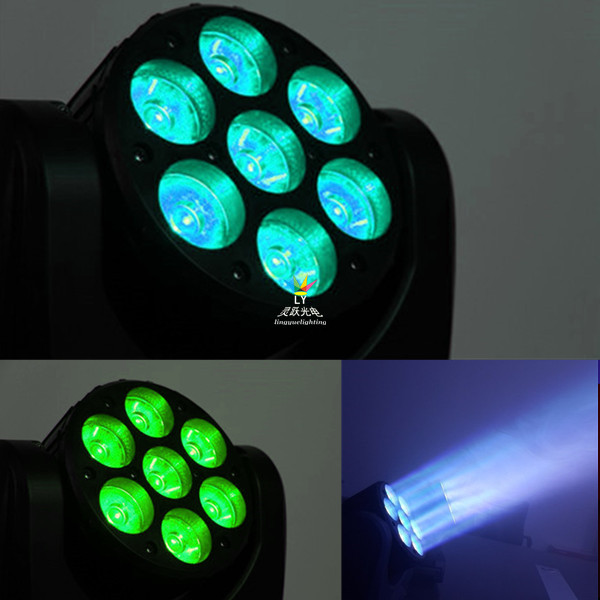

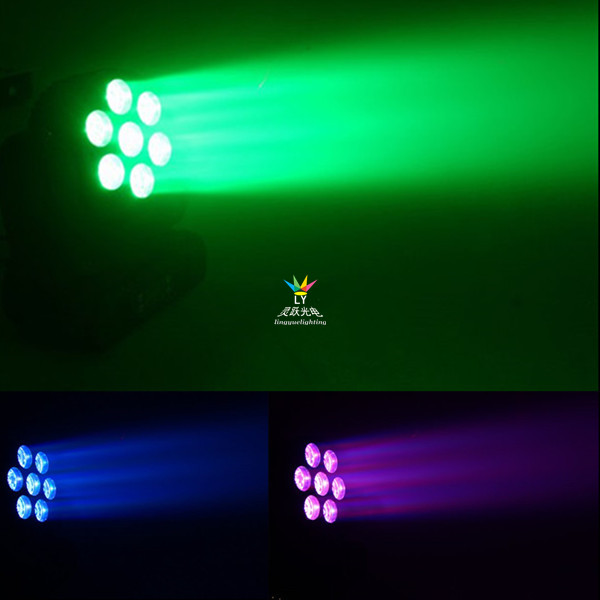

Lighting Effect
Video Show
Applications
Download

Product model: LY-307M

Product name: 7pcs LED moving head light


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Power: 150W

LED light source: 7x12W high brightness LED

LED color: red, green, blue and white four in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: smooth surface, 7° beam

Rotation angle: horizontal 540°, vertical 270°

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 16 DMX512 channels

Strobe: Strobe speed 1-18 times per second

Dimming: 0-100% linear dimming

Display: LCD digital display + button

Waterproof rating: IP20

Lamp net weight: 3.9kgs

1 set/carton packing size: 33x22x38cm gross weight: 5.6kgs

2 sets/carton packing size: 46x34x40cm gross weight: 13kgs

4 sets/carton packing size: 47x67x41cm gross weight: 28kgs

4 sets/air box packing size: 42x62x49cm gross weight: 34kgs



Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
