Product Name: 280W beam spot wash
Product status: conventional product
Place of Origin: China (Guangzhou)
Product model: Thor-10R
Product power: AC24v/110-240v 50-60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter
Lighting Effect
Video Show
Applications
Download

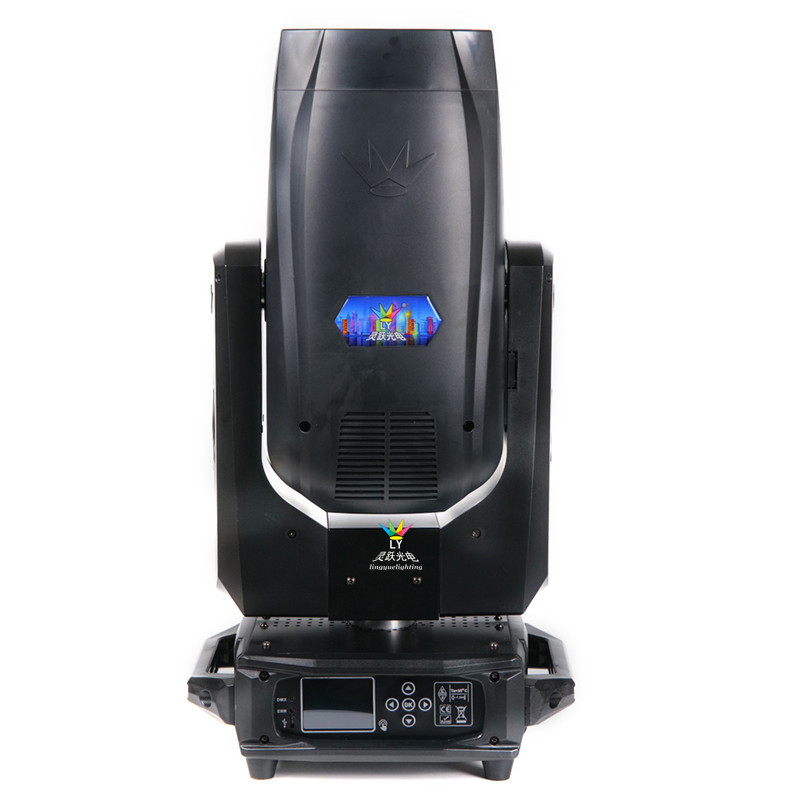

Product Model: Thor-10R
Product Name: 280W 10R Beam Spot Wash

Product Parameters:
Rated Voltage: AC100V~240V ±10﹪, 50Hz~60Hz
Total Power: 450W
Bulb: Yodn/Osram/Philips 280W (2000 hours)
Optical lens: 6 lens lens group
Rotation angle: 540° in the horizontal direction, 270° in the vertical direction (16bit precision scanning)
Beam angle: 2.5°-20°
Control mode: auto, master-slave, DMX512, voice control
Channel mode: 24 international standard DMX512 channels
Electronic focus: high-precision glass optical lens, 50000LUX at 20 meters
Strobe: Strobe speed is 1-20 times per second, pulse strobe, synchronous and asynchronous strobe.
Dimming: 0%-100% linear dimming
Atomization: 0%-100% linear atomization, 1 independent atomization effect
Gobo plate: 1 fixed gobo plate has 17 gobos + white circle, with pattern jitter and pattern arbitrary positioning function, 1 rotating gobo plate can choose 9 glass patterns or customized LOGO or one glass pattern can be replaced with a colorful plate effect
Color wheel: 1 fixed color wheel has 13 color chips, can be half-color effect, linear color conversion and two-way variable speed rotation rainbow effect
Prism disk: double prism effect, can be superimposed, 8/16/24 prism or waffle prism (8+8+8 or 8+16+24 optional) can be rotated forward and backward, and has prism positioning function, prism atomization Features
Focusing: with linear focusing function, 2 meters to infinitely adjustable pattern definition.
Display: LCD liquid crystal display+buttons or touch screen
Waterproof rating: IP20
Product size: 38.2x36.5x58.7cm;Lamp net weight: 16kgs
1pc/carton packing size: 47x47x74cm;gross weight: 23kgs
2pcs/air box packing size: 83x44x84cm;gross weight: 72kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report
Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual
Installation method: standing, upside down, side hanging
Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)
Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
