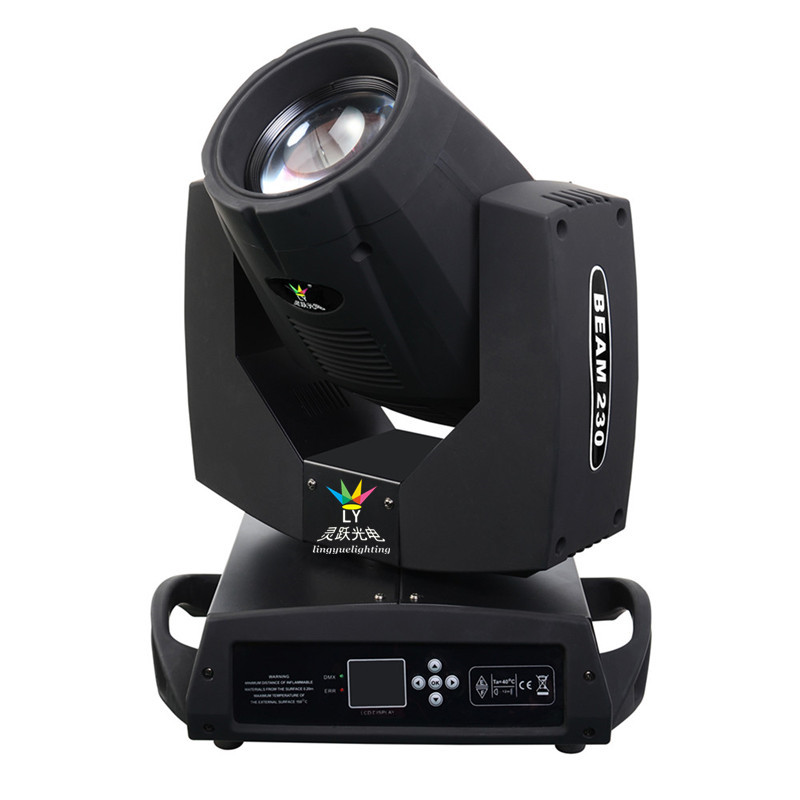

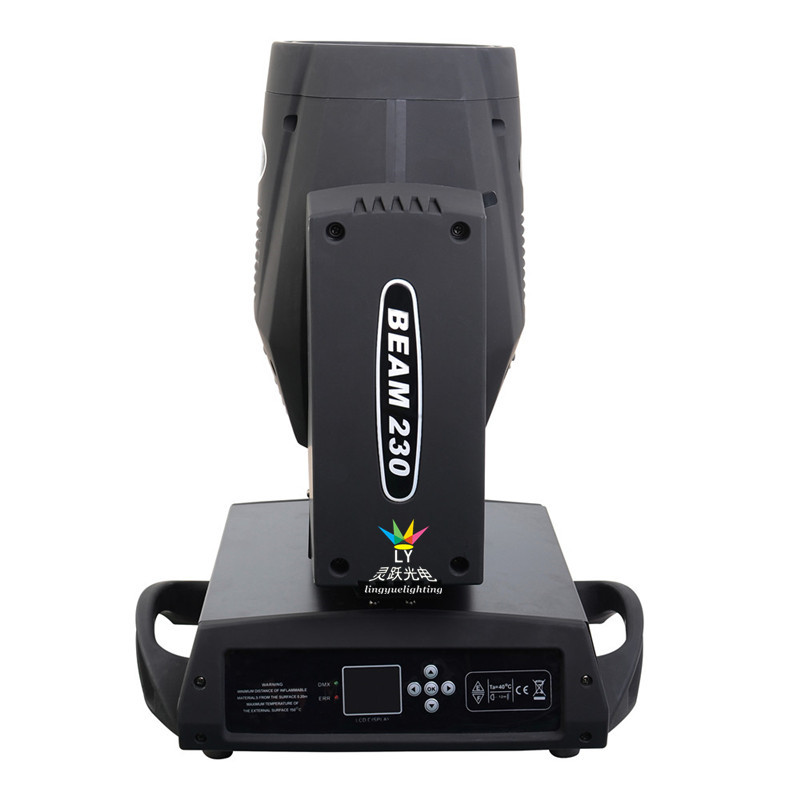

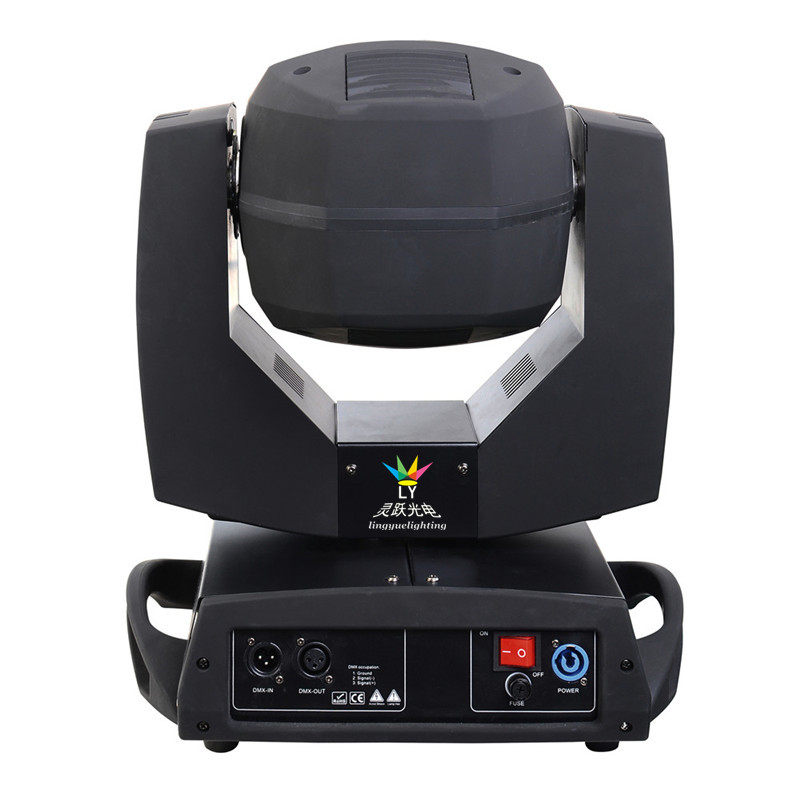

Product Name: 230W 7R beam light
Product status: conventional product (originating in Guangzhou-China)
Place of Origin: China (Guangzhou)
Product model: LY-230S 230W 7R beam light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter
Lighting Effect
Video Show
Applications
Download

Product model: LY-230S

Product name: 230W 7R beam light


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Total power rate: 350W

Bulb power: Osram/Youdeng/Japan Phoenix 230W

Optical lens: 6 lens lens group

Rotation angle: 540° in the horizontal direction, 270° in the vertical direction (16bit precision scanning)

Beam angle: 0°-4°

Control mode: self-propelled, master-slave, DMX512, voice control

Channel mode: 16 international standard DMX512 channels

Electronic focus: high-precision glass optical lens, 50000LUX at 20 meters

Strobe: Strobe speed is 1-20 times per second, pulse strobe, synchronous and asynchronous strobe.

Dimming: 0%-100% linear dimming

Atomization: 0%-100% linear atomization, 1 independent atomization effect

Gobo plate: 17 gobos + white circle, with pattern jitter and arbitrary positioning function

Color wheel: 1 fixed color wheel has 14 color chips, with half-color effect, linear color conversion and two-way variable speed rotation rainbow effect

Prism disk: a prism disk, optional 8/16/24 prism, effect movement, prism atomization function;

Focusing: with linear focusing function, 2 meters to infinitely adjustable pattern definition.

Display: LCD liquid crystal display + buttons or touch screen

Waterproof rating: IP20

Lamp net weight: 17.7kgs

1 set/carton packing size: 56x46x42cm gross weight: 20.8kgs

2 sets/air box packing size: 87x46x71cm gross weight: 65kgs



Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
