PRODUCT CENTER
Stage Lighting Manufacturer

From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.

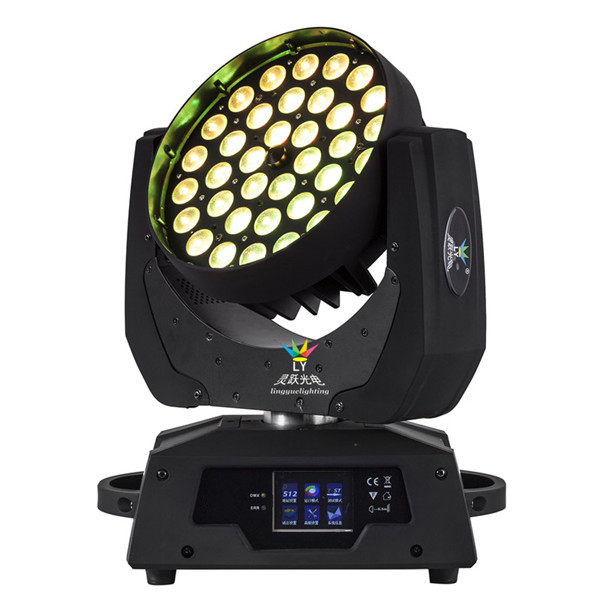

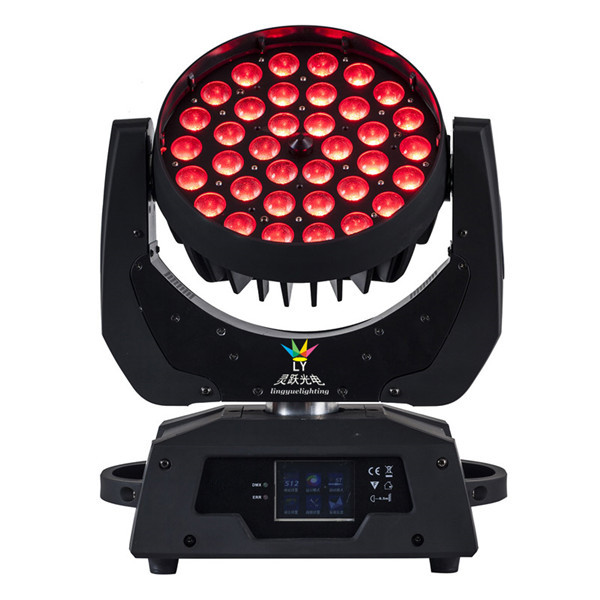

Product Name: 36pcs 6in1 LED wash
Product status: conventional product (originating in Guangzhou-China)
Place of Origin: China (Guangzhou)
Product model: LY-361M 36 six-in-one LED focusing and dyeing moving head light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter

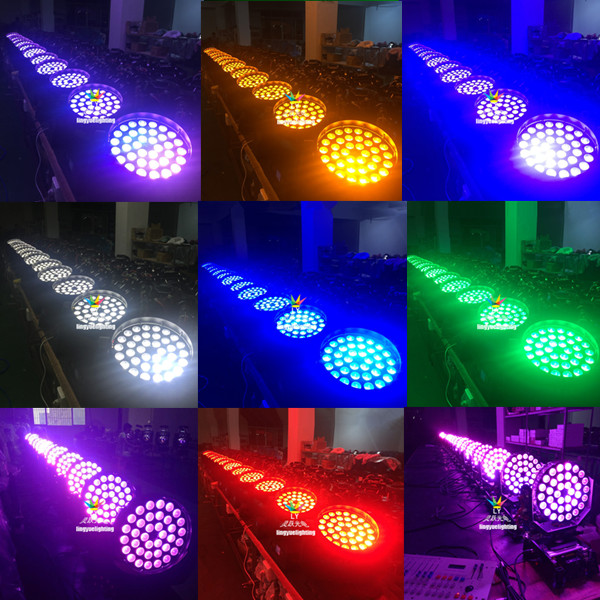

Lighting Effect
Video Show
Applications
Download

Product model: LY-361M

Product name: 36pcs 6in1 LED wash moving head light


Product parameters:

Rated voltage: AC100V~240V ±10﹪, 50Hz~60Hz

Power: 648W

LED light source: 36pcs high-brightness LEDs

LED color: red, green, blue, white, orange and purple six in one, can be mixed infinitely

LED life: 6-10 million hours

Optical lens: smooth surface, 7°

Rotation angle: horizontal 540°, 16bit fine-tuning, vertical 270°, 16bit fine-tuning

Control mode: DMX512, master-slave, self-propelled, voice control

Channel mode: 18 DMX512 channels

Focusing function: horizontal and vertical independent linear speed adjustment, scanning fine adjustment, X/Y axis 16BIT scanning subdivision for precise positioning

Strobe: Strobe speed 1-18 times per second

Dimming: 0-100% linear dimming

Display: blue LCD digital display + buttons or touch screen

Waterproof rating: IP20

Lamp net weight: 10.5kgs

1 set/carton packing size: 43x32x41cm gross weight: 11.9kgs

2 sets/air box packing size: 65x39x66cm gross weight: 49kgs

4 sets/air box packing size: 87x65x56cm gross weight: 68.5kgs


Certification and report: CE/ROHS/ISO9001/quality inspection report

Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual

Installation method: standing, upside down, side hanging

Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)

Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
